Product Description:

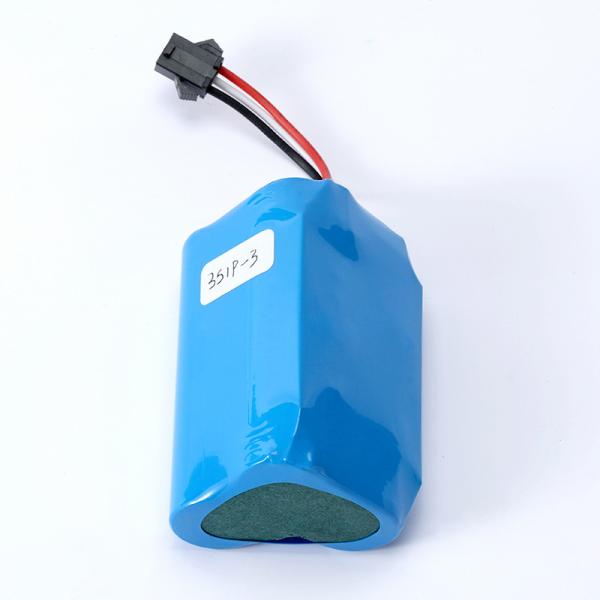

Rechargeable 18650 Lithium Ion Battery Pack 10.8V 3400mAh Enerforce
Battery
Our digital camera batteries are designed for durability with
shockproof features and efficient heat dissipation. We use nickel
sheet welding to reduce resistance and ensure balanced discharge.
Our advanced Battery Management System (BMS) ensures a consistent
and stable current output.
Key Highlights:
1. High energy density: Our 18650 battery pack significantly
extends your digital camera's range.
Customizable options: Tailor the battery pack to fit your camera
with flexible cell choices.
Reliable performance: Experience dependable voltage and high
discharge rates for optimal efficiency.
Enhanced safety: Our batteries include built-in protection, thermal
management, and safeguards against overcharging and
over-discharging.
Long-lasting: These batteries maintain over 80% capacity even after
1000 cycles, guaranteeing prolonged performance.
18650 Pack Parameters:
| 24V/36V/48V/60V/72V 18650 Pack Reference |
| Model | Assembly | Capacity | Dimension | Weight |
| 24V8Ah | 7S4P | 2000mah | 145*75* 70mm | 1.6Kg |
| 24V10Ah | 7S4P | 2500mah | 145*75* 70mm | 1.6Kg |
| 24V12Ah | 7S6P | 2000mah | 145*111*70mm | 2.3Kg |
| 24V15Ah | 7S6P | 2500mah | 145*111* 70mm | 2.3Kg |
| 36V8Ah | 10S4P | 2000mah | 165*93* 70mm | 2.2Kg |
| 36V10Ah | 10S4P | 2500mah | 165*93* 70mm | 2.2Kg |
| 36V12Ah | 10S6P | 2000mah | 200*111* 70mm | 3.2Kg |
| 36V15Ah | 10S6P | 2500mah | 200*111* 70mm | 3.2Kg |
| 36V18Ah | 10S9P | 2000mah | 295*111*70mm | 4.7Kg |
| 36V20Ah | 10S8P | 2500mah | 315*93* 70mm | 4.2Kg |
| 48V8Ah | 13S4P | 2000mah | 255* 75* 70mm | 2.8Kg |
| 48V10Ah | 13S4P | 2500mah | 255*75* 70mm | 2.8Kg |
| 48V12Ah | 13S6P | 2000mah | 255*111*70mm | 4.1Kg |
| 48V15Ah | 13S6P | 2500mah | 255*111* 70mm | 4.1Kg |
| 48V18Ah | 13S9P | 2000mah | 255*166* 70mm | 6.0Kg |
| 48V20Ah | 13S8P | 2500mah | 255*148* 70mm | 5.4Kg |
| 48V26Ah | 13S10P | 2600mah | 255*185*70mm | 6.7Kg |
| 60V10Ah | 16S4P | 2500mah | 311*75*70mm | 3.6Kg |
| 60V15Ah | 16S6P | 2500mah | 311*111*70mm | 5.1Kg |
| 60V20Ah | 16S8P | 2500mah | 311*148*70mm | 6.6Kg |
| 72V20Ah | 20S8P | 2500mah | 385*148* 70mm | 8.2Kg |
18650 Pack Applications:
Commonly employed in e-bike batteries, electric scooters,
self-balancing scooters, power banks, electrical tools, medical
instruments, flashlights, drones, and more.
18650 Pack Customization:
Our custom 18650 battery packs are available in a range of
voltages, including 12V, 24V, 36V, 48V, and 72V. We offer a wide
range of customization options to meet the specific needs of your
application.
Our electric bike batteries are renowned for their durability and
safety features. They feature a strong shockproof and
heat-dissipating design, along with precision nickel sheet welding
to reduce internal resistance, ensuring enhanced performance and
longevity. Our top-tier Battery Management System (BMS) maintains
consistent power output while safeguarding against overcharging,
undercharging, short circuits, and more. In summary:
1. Durable shockproof and heat-dissipating design.
2. Precision nickel sheet welding for reduced internal resistance.
3. High-performance BMS for reliable power output.
4. Extended battery lifespan.
5. Guaranteed safety.
Support and Services:
Our 18650 Pack Technical Support and Services offer:
24/7 Expert Consultation: Access expert guidance and collaboration for your project anytime.
Tailored Solutions: Customized services to meet your specific requirements, including
battery pack design and unique solutions.
Adaptable Production: Our factory handles orders of all sizes to accommodate your
changing project needs.
Quality Assurance: Rigorous testing and certification (CE and UL) ensure top-notch
battery quality surpassing industry standards.
Secure Shipping: We use UN38.3 certified packaging for safe battery pack
transportation.
Comprehensive Support: Our team provides continuous technical assistance, including
inquiries, troubleshooting, and maintenance, throughout your
project's lifecycle.
Packing and Shipping:
Packaging and Shipping of 18650 LI-Ion Battery Pack
Custom 5-layers hard export standard carton boxes or high quality
UN box with plasticplates /wooden box packing(if required).
Carton size depends on the weight allowed and volume.
Also can pack according to customers' requirement.
FAQ:
Q: What type of battery is used in this electric bike?
A: Li-ion battery with Li(NiCoMn)O2 composition.
Q: What are the advantages of Li-ion batteries over Ni-MH and lead
acid batteries?
A: Li-ion batteries offer a number of advantages, including:
Longer cycle life
Lightweight design
No memory effect
Environmental friendliness
Q: What is the recommended battery temperature range?
A: The recommended battery temperature range is 0-45°C for charging
and -20-65°C for discharging.
Q: What type of cells are used in your electric bike batteries?
A: We use high-quality domestic cells that can be tailored to your
specific specifications.
Q: Is a charger included with your electric bike batteries?
A: Yes, all our batteries come with a charger that offers both
standard and fast charging options.
Q: Are your electric bike batteries equipped with a Battery
Management System (BMS)?
A: Yes, our batteries feature a robust SEIKO IC BMS that protects
against short circuits, overcharging, over-discharging, and
overcurrent incidents.
Q: Do you provide OEM and ODM services?
A: Yes, we offer comprehensive OEM and ODM services to deliver
customized, high-quality lithium batteries tailored to your
specific needs.
Contact us today to learn more about our Lithium Ion Batteries and
OEM and ODM services.
